Key takeaways
- VRF moves refrigerant to each zone; a chiller plant moves chilled water to air handlers and fan coils.
- VRF is usually simpler to phase and zone, and suits offices, hotels, showrooms and retrofits.
- Chilled water tends to suit large single buildings, 24x7 loads, hospitals and tight humidity control.
- Decide on lifecycle cost and operating profile, not first cost alone.
For most medium and large commercial buildings, the central air-conditioning decision comes down to two families of system: VRF (variable refrigerant flow, sold by some manufacturers as VRV) and chilled water systems built around a chiller plant. Both are proven, both can be efficient, and both can be badly applied. This guide compares them on the factors that actually decide the outcome.
How a VRF system works
A VRF system is a direct-expansion refrigerant system. Outdoor condensing units with variable-speed compressors are connected by refrigerant piping to many indoor units: cassettes, ducted units, wall-mounted units or high-wall units. Electronic expansion valves vary the refrigerant flow to each indoor unit according to its demand, so each zone can be controlled independently.
Heat pump VRF systems provide cooling or heating across a whole system at one time. Heat recovery VRF systems can cool some zones while heating others, moving heat between them.
How a chilled water system works
In a chilled water system, a chiller cools water, usually to somewhere around 6 to 7°C, and pumps circulate it through insulated piping to air handling units (AHUs) and fan coil units (FCUs). Fans blow room air or fresh air across the chilled water coils, and the warmed water returns to the chiller.

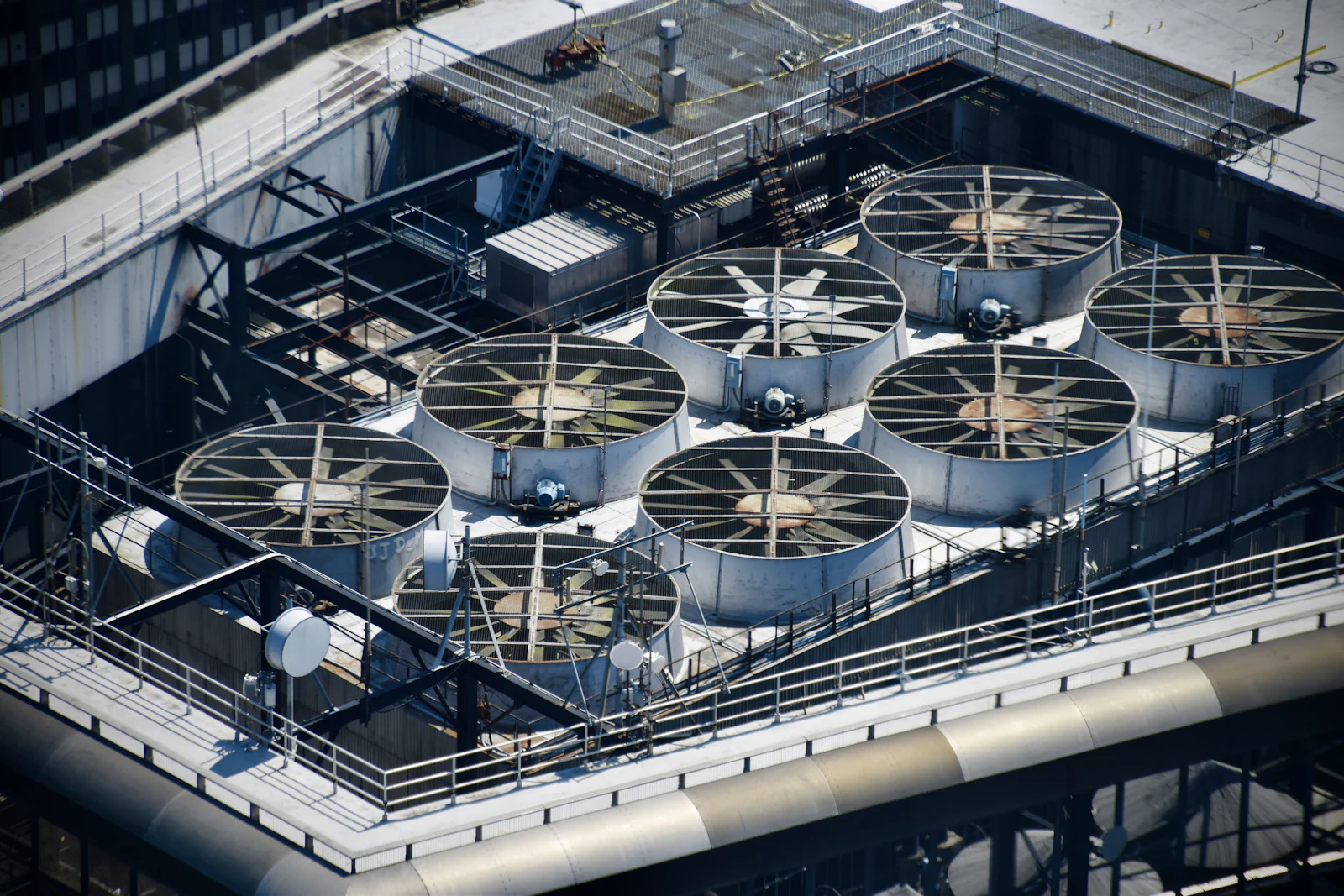

Chillers are either air-cooled, rejecting heat directly to outdoor air, or water-cooled, rejecting heat to condenser water that is cooled in cooling towers. Water-cooled plants are generally more efficient but need cooling towers, condenser pumps, water treatment and make-up water.
VRF vs chiller: side-by-side comparison
| Factor | VRF system | Chilled water system |
|---|---|---|
| Typical scale | Small to large buildings, built up from modular outdoor units | Medium to very large buildings and campuses |
| Zoning | Excellent; each indoor unit controlled separately | Good, but depends on AHU/FCU layout and controls |
| Part-load performance | Strong, thanks to variable-speed compressors | Strong with variable-speed chillers, pumps and good plant controls |
| Plant space | Outdoor units on roof or terraces; no central plant room | Chiller plant room or yard, pumps, and cooling towers if water-cooled |
| Fresh air and humidity | Needs a separate treated fresh air system for high fresh air loads | AHUs handle large fresh air volumes and tighter humidity control |
| Refrigerant in occupied spaces | Yes; room volumes must be checked against refrigerant safety limits | Refrigerant stays in the plant; only water enters the building |
| Redundancy | Distributed; one outdoor unit failure affects part of the building | Achieved with standby chillers and pumps |
| Phasing | Easy to install floor by floor as occupancy grows | Central plant usually sized and installed up front |
| Water use | None for heat rejection | Water-cooled plants consume make-up water in cooling towers |
| Maintenance | Many units to service; specialised refrigerant work | Concentrated plant maintenance plus water treatment |
When VRF is usually the better fit
- Offices and IT floors with many rooms that need individual control and different operating hours
- Hotels and serviced apartments, especially with heat recovery where some rooms need heating while others cool
- Showrooms and retail where plant space is limited
- Retrofits in existing buildings, because refrigerant pipes are far smaller than chilled water pipes and ducts
- Phased occupancy, where floors are fitted out as tenants arrive
When a chiller plant is usually the better fit
- Large single buildings such as malls, large hospitals and institutional buildings, where central plant economics favour chilled water
- 24x7 and critical loads that need planned redundancy with standby chillers and pumps
- High fresh air requirements such as hospitals, laboratories, kitchens and assembly spaces
- Clean rooms and process areas that need tight temperature and humidity control; see our guide to clean room HVAC design
- Industrial process cooling where chilled water also serves machines
Hybrid approaches are common
The choice is not always one or the other. Two combinations we see regularly:
- VRF plus a treated fresh air unit: VRF handles the room loads while a dedicated unit pre-cools and dehumidifies the fresh air, solving VRF’s main weakness with high fresh air volumes.
- Chilled water for the base building plus VRF for after-hours areas: server rooms, security rooms or executive floors run on VRF so the central plant does not have to run all night for a small load.
Think in lifecycle cost, not first cost
First cost varies with building size, and the cheaper option to install is not always cheaper to own. A useful comparison considers:
- Installed cost, including plant room civil work, cooling towers and treated fresh air where needed
- Annual energy cost at realistic part-load operating hours, not only at peak
- Maintenance cost, including water treatment for water-cooled plants
- Expected equipment life and replacement strategy
- The cost of downtime, which may justify redundancy
How to make the decision
The decision should follow the design, not precede it. Start with a proper heat load calculation, a clear picture of zones and operating hours, and the fresh air requirement. With those in hand, the better system is usually obvious, and where it is close, a lifecycle cost comparison settles it.
1 Worldcrafts designs and installs both VRF and chilled water systems, so our recommendation is not tied to one product. Share your drawings and we will assess which approach fits your building.
Frequently asked questions
For small and medium buildings VRF often has a lower installed cost because it needs no central plant room, cooling towers or large chilled water pipes. For large buildings the comparison can reverse. Energy, maintenance and replacement costs over the system life should be compared too, not only first cost.
Yes. VRF is built from modular outdoor units, so large buildings can be served by many systems. Limits on piping length, height difference and refrigerant quantity in small rooms have to be checked during design, and high fresh air loads usually need a separate treated fresh air system.
An air-cooled chiller rejects heat directly to outdoor air with fans. A water-cooled chiller rejects heat to condenser water cooled in a cooling tower. Water-cooled plants are generally more efficient, but they need cooling towers, extra pumps, water treatment and a reliable water supply.
VRV is a trade name used by one manufacturer for its variable refrigerant flow systems. The underlying technology, variable refrigerant flow to multiple indoor units, is the same concept.
